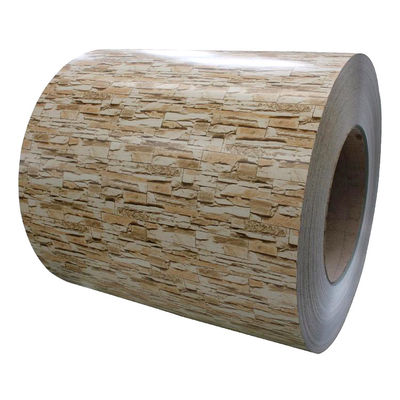

Hot Dipped Color Coated Steel Coil 0.2mm Thickness Zinc Coated Dx51d SPCC SGCC

Name: Hot Dipped Color Coated Steel Coil 0.2mm Thickness Zinc Coated Dx51d SPCC SGCC
Brand: Jiangsu Xinyi Steel Industry Co., Ltd.
SKU: Dx51d,Dx52D, Dx53D,SGCC,SPCC
Price: 626.46 USD
Availability: InStock

Brand Name:	ASTM DIN JIS
Model Number:	Dx51d,Dx52D, Dx53D,SGCC,SPCC
MOQ:	1 ton
Price:	$487.46-766.01/ton
Payment Terms:	L/C, T/T
Supply Ability:	70000 Tons/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001 CE

Application:

Bolier/Container/Ship/Flange Plate,

Edge:

Slit Edge

Stock:

Stock

Model No.:

Dx51d,Dx52D, Dx53D,SGCC,SPCC

Thickness:

0.12-2.0mm

Width:

600-1500mm

Paint Top:

10-35 Microns

Paint Back:

5-35 Microns

Zinc Coating:

40-275G/M2

Tolerance:

+/-0.2mm

Spangle:

Regular / Minimum / Zero / Big Spangle

Hardness:

G350- G550

Transport Package:

Standard Sea Packing

Specification:

0.12*1250mm

Origin:

China

HS Code:

7225910000

Supply Ability:

30000ton/Month

After-sales Service:

1 Years

Warranty:

1 Years

Standard:

ASTM, JIS, GB, AISI, DIN, BS

Certification:

ISO, RoHS, IBR

Surface Treatment:

Galvanized

Technique:

Cold Rolled,Hot Rolled

Samples:

US$ 5/Piece 1 Piece(Min.Order) | Request Samp

Customization:

Available | Customized Request

Packaging Details:

Normal export packaging or customized according to customer needs

Supply Ability:

70000 Tons/Year

Highlight:

Hot Dipped Color Coated Steel Coil

Color Coated Steel Coil 0.2mm

Dx51d Colour Coated Steel Coils

Product Description

Model NO.

Prepainted Galvanized Steel Coil

Application

Home Appliances/Roof Sheets

Edge

Mill

Stock

Thickness

0.12-3.0mm

Width

500-2500 mm

Certificate

API, ISO9001

Coating

Z30-Z60

Processing Service

Welding, Punching, Cutting, Bending, Decoiling

Hardness

Full Hard

Zinc Coating

30-275G/M2

Color

Ral Color

Tolerance

Delivery Time

Within 7 Days

MOQ

10 Tons

Transport Package

Standard Packaging

Specification

Customized available

Trademark

Sino

Origin

China, Shandong

Production Capacity

100000 Tons/Month

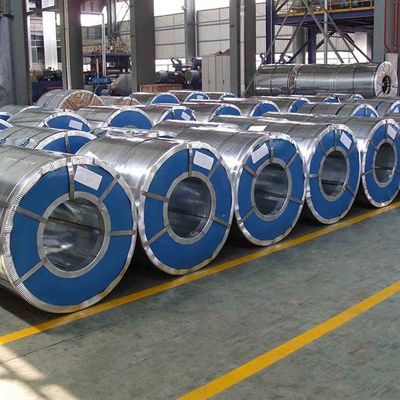

Hot Dipped Galvanized Steel Coil is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
It has excellent corrosion resistance, paintability, and workability due to Zinc's characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same. Hot-dip galvanizing is the process of applying a protective zinc coating to a steel sheet or iron sheet, to prevent rusting.
Excellent anti-corrosion, paintability, and processability due to the self-sacrificing characteristic of zinc. Available to select and produce the desired amount of zinc gilded and in particular enables thick zinc layers(maximum 275g/m2). Classified as either zero spangle or extra smooth depending on whether the sheet undergoes skin pass treatment.

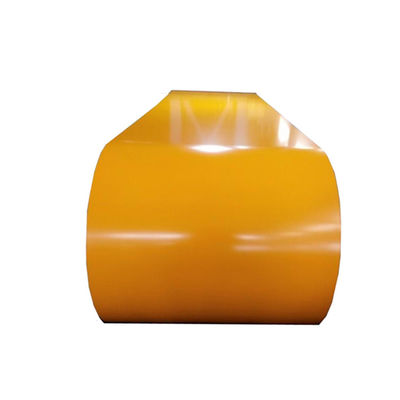

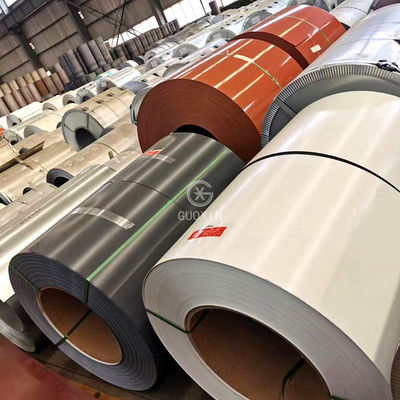

Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemicaltreatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.

Thick	0.14-2.0mm
Width	600-1500mm
Zinc Coating	40-275G/M2
Coil Weight	3-5 Tons
Surface Structure	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Coil ID	508 / 610MM
MOQ	3-5 tons

Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on
the surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel plate; alloyed galvanized steel plate.
This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron. This galvanized steel coil has good paint adhesion and weldability.
Fast Delivery 0.2 Thickness Coated Zinc Z30 Z40 Dx51d Hot Dipped Galvanized Steel Coil

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Can be packaged according to customer requirements.

Wuxi Xinyi Steel Co., Ltd. is a professional production of steel products, steel plate, steel coil, steel pipe, galvanized steel plate, galvanized steel coil, galvanized steel pipe and other products production enterprises, testing equipment is complete, strong technical force. There are many kinds of products, good quality, reasonable price, fashion design, widely used in machinery manufacturing, metallurgical minerals, building materials, ships, aircraft, automobiles and other industries. Our products are widely recognized and trusted by users to meet the changing economic and social needs.
The company covers an area of 20,000 square meters, with more than 100 employees and an annual revenue of 180 million US dollars. We are willing to accompany customers to grow together, welcome new and old customers from all walks of life to contact us, create future business relations, common success!

Fast Delivery 0.2 Thickness Coated Zinc Z30 Z40 Dx51d Hot Dipped Galvanized Steel Coil

Q1: How many countries you already exported?
A1: Exported to more than 50 countries mainly from Russia, India,Vietnam, Egypt, Turkey, Saudi Arabia,
Brazil,Chille,Dubai,Belgium etc.

Q2: How long will it take to execute my order?
A2: Our normal time to execute the order is 7-20 working days. We will let you know the estimated lead
time after payment ASAP.

Q3 Can I have a sample for testing?
A3: Free samples, you just need to pay the freight.

Q4 Do you have inspection for the products before packing?
A4: 100% self-inspection for the products, we put the quality as our first priority.

Q5 what kind of payment does your company support?
A5: T/T, 100% L/C at sight, are all accepted.
